PT 1801

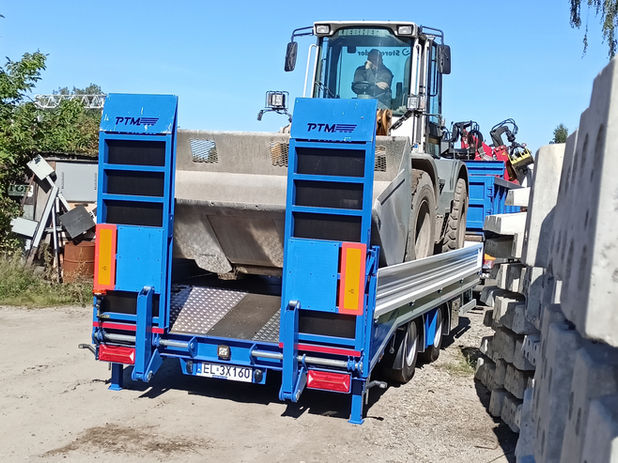

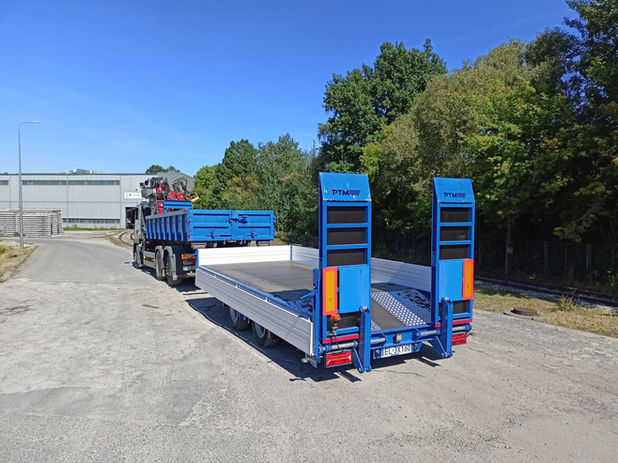

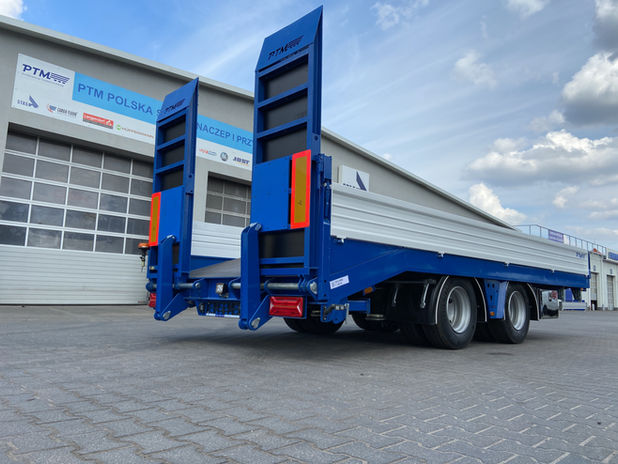

2-axle multi-purpose low-loader trailer with box body The trailer produced by PTM Poland with model designation PT-18 is a multi-purpose vehicle in the field of special and heavy transport. It is a tandem-type vehicle - two SAF low loader axles with a GVW of 9,000 kg fixed in the central part of the trailer.

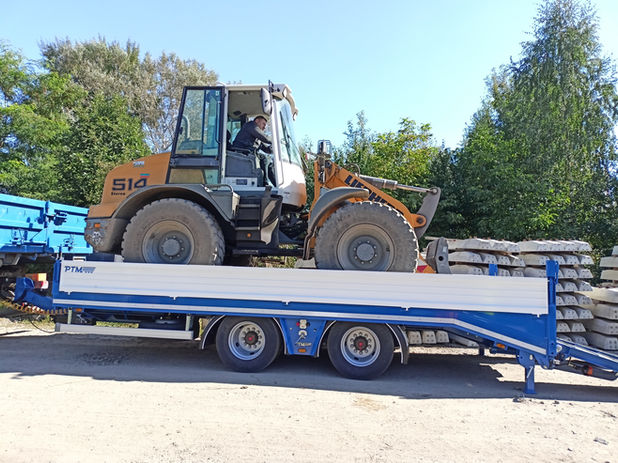

The trailer is suitable for transporting, among other things, construction machinery, agricultural machinery, industrial equipment and all kinds of special vehicles. The maximum permissible gross vehicle weight is 18,000 kg, allows loading a load of about 14,000 kg, a length of 6,000 cm and a width of no more than 2,480 cm (with the sides attached). The vehicle's frame is made of high-quality structural steel with welded joints. The box is equipped with five pairs of cargo handles, which allows for the safe fastening of the transported cargo. The entire vehicle is painted with 2-component acrylic lacquer for commercial vehicles (according to RAL color palette).

WABCO braking system, air suspension and EBS electronic braking system with steel air reservoir.

TECHNICAL DATA:

- Maximum total weight: 18000 kg

- Height of the steel sideboard: 400 mm

- Permissible payload: 13810 kg

- Wheelbase 1-2: 1420 mm

- Actual Trailer Weight: 4190 kg

- Length of rear overhang 2360: mm

- Length of loading platform LP: 6000 mm

- Drawbar length: 1850 mm

- Internal width of platform LW: 2480 mm

- Permissible axle load: 88,2 kN

- Loading zone height: 980 mm

- Total vehicle length LG: 8200 mm

- Total vehicle width LS: 2550 mm
